Platinum F NW F

Construction:-

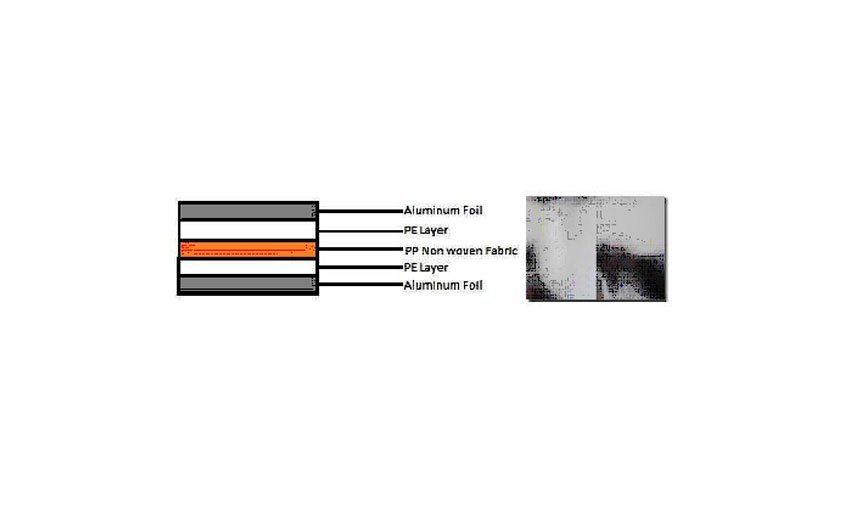

5 Layer Co-Extruded Composite Materials Made From UV & FR Reinforced PP Non Woven Fabric With Both Side Highly Reflective Aluminum Foil.

Typical Physical Property:-

Property	Test Method	Unit	Results
Grammage	Scale	g/m²	165-175(+/-5GSM)
Tensile- MD and CD	ASTM D 828	N/25 mm	100- 200
Burst Strength	ASTM D 774	N/25 mm	150
Water Vapor Transmission	ASTM F 1249	N	<1
Temperature Resistant	ASTM C1263	-	Remains Flexible No Delaminating
Emissivity	ASTM E 408	W/M²	0.03
Reflectivity	ASTM E 408	%	97%
Working Temperature		´C	-50´Cto110´C

Application:-

Our PLATINUM-F-NW-F Both Side Aluminum Foil PP Fabric insulation are Mainly Used For Under Roof Decking, Pallet Cover, Thermal Cover, Over Existing Attic insulation, in Floors, Walls and Crawl Spaces, and in Industrial and Commercial Buildings to Block Radiant Heat Coming in to House Through The Roof During The Summer and Retain Indoor Heat Generated During the Winter. Also Used as a Moisture Vapor Barrier in Air Conditioning Duct works and Cold Rooms. It is used as Packing Material for Big Machine to Prevent Moisture and Radiant Heat to Contact Machine. It is Also Used in PEB Buildings under Roof Insulation.

Product Benefits:-

Remarks:-

1. Above Data are Typical Results and Not the Guaranteed Performance.
2. Tolerance: Weight and Thickness: ±10 % / Width : ±2MM / Length : ±0.5%.
3. The Products Should Be Stored at Room Temperature Away From Wet and Heat Source.
4. Please Do Trial - Application And Make Sure the Product Can Serve the Specific Application Before Actually Put it to Use.

Packaging Details:-
